QPSK Mapper using VHDL

RTL code

library ieee;
use ieee.std_logic_1164.all;

entity QPSKmapper is
port(	nrst, pclk : in std_logic;
	inbits : in std_logic_vector(1 downto 0);

	rdata : out std_logic_vector(5 downto 0);
	idata : out std_logic_vector(5 downto 0)
	);
end QPSKmapper;

architecture arch of QPSKmapper is
signal rmapout, imapout : std_logic_vector(5 downto 0);
--signal inbits : std_logic_vector(1 downto 0);

begin

process(nrst, pclk)
begin
	if nrst = '0' then
		rmapout <= "000000";
		imapout <= "000000";
	elsif pclk = '1' and pclk'event then
		if inbits = "00" then
			rmapout <= "010000";
			imapout <= "010000";
		elsif inbits = "01" then
			rmapout <= "010000";
			imapout <= "110000";
		elsif inbits = "10" then
			rmapout <= "110000";
			imapout <= "010000";
		else
			rmapout <= "110000";
			imapout <= "110000";
		end if;
	end if;
end process;

rdata <= rmapout;
idata <= imapout;

end arch;

---

Testbench code

library ieee;
use ieee.std_logic_1164.all;

entity tb_QPSKmapper is
end tb_QPSKmapper;

architecture behavior of tb_QPSKmapper is

component clkgen
   port(nrst  : in std_logic;
        mclk  : in std_logic;

        clk8x : out std_logic;
        clk4x : out std_logic;
        clk2x : out std_logic;
        clk1x : out std_logic
   );
end component;

component rbgen
   port(nrst : in std_logic;
        clk  : in std_logic;

        rbit : out std_logic
   );
end component;

component Serial2Parallel
   port(nrst  : in std_logic;
        sclk  : in std_logic;
        pclk  : in std_logic;
        inbit : in std_logic;

        outbits : out std_logic_vector(1 downto 0)
   );
end component;

component QPSKmapper
	port(nrst : in std_logic;
	     pclk : in std_logic;
	     inbits : in std_logic_vector(1 downto 0);

	     rdata : out std_logic_vector(5 downto 0);
	     idata : out std_logic_vector(5 downto 0)
	);
end component;


signal nrst, mclk : std_logic;
signal clk8x, clk4x, clk2x, clk1x : std_logic;
signal rbit : std_logic;

signal outbits : std_logic_vector(1 downto 0);

signal rmapout, imapout : std_logic_vector(5 downto 0);




begin
iclkgen : clkgen port map(
      nrst  => nrst,
      mclk  => mclk,
      clk8x => clk8x,
      clk4x => clk4x,
      clk2x => clk2x,
      clk1x => clk1x
   );

irbgen : rbgen port map(
      nrst => nrst,
      clk  => clk2x,
      rbit => rbit
   );

is2p : Serial2Parallel port map(
      nrst    => nrst,
      sclk    => clk2x,
      pclk    => clk1x,
      inbit   => rbit,
      outbits => outbits
   );

iqmap : QPSKmapper port map(
	nrst => nrst,
	pclk => clk1x,
	inbits => outbits,

	rdata => rmapout,
	idata => imapout
	);

tb : process
begin
   mclk <= '1';
   wait for 20 ns;
   mclk <= '0';
   wait for 20 ns;
end process;

rstp : process
begin
   nrst <= '0';
   wait for 100 ns;
   nrst <= '1';
   wait;
end process;

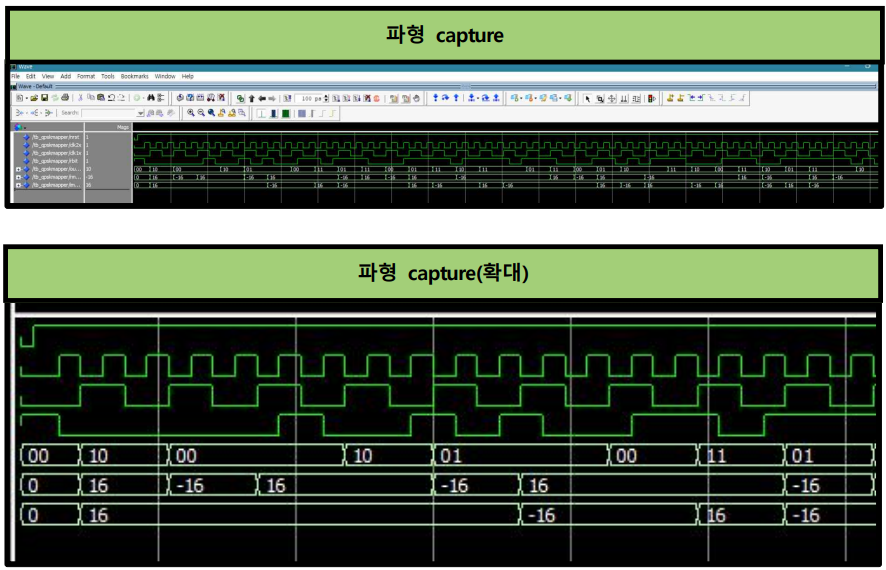

end behavior;

---
