Whole Processing using Conversion

TestBench code

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

library work;
use work.mypackage.all;

entity tb_whole_until_conv is
end entity;

architecture behavior of tb_whole_until_conv is

component rbgen is
port(
	nrst, clk : in std_logic;
	rbit    : out std_logic);
end component;


component clkgen is
port(
	nrst, mclk                 : in std_logic;
	clk8x, clk4x, clk2x, clk1x : out std_logic);
end component;


component s2p is
generic (prate : in integer);
port(
	nrst, sclk, pclk, inbit : in std_logic;
	outbits : out std_logic_vector((prate-1) downto 0));
end component;


component QAM16mapper is
port(
	nrst, sclk : in std_logic;
	inbits : in std_logic_vector(3 downto 0);

	rdata : out std_logic_vector(5 downto 0);
	idata : out std_logic_vector(5 downto 0));
end component;


component QAM16demapper is
port(
	nrst, sclk : in std_logic;
	rdata, idata : std_logic_vector(5 downto 0);

	outbits : out std_logic_vector(3 downto 0));
end component;



component UpSample is
generic( UpRatio : integer := 4;
	 Dwidth  : integer := 6);

port(
	nrst, upclk : in std_logic;
	rdin, idin : in std_logic_vector((Dwidth-1) downto 0);

	rdout, idout : out std_logic_vector((Dwidth-1) downto 0));
end component;


component DnSample is
generic ( DnRatio : integer := 4;
	  Dwidth  : integer := 10;
	  LatchTime : integer := 7);
port(
	nrst, upclk, dnclk : in std_logic;
	rdin, idin : in std_logic_vector((Dwidth-1) downto 0);

	rdout, idout : out std_logic_vector((Dwidth-1) downto 0));
end component;



component psf65T is
port(
	nrst : in std_logic;
	clk : in std_logic;
	PSFin: in std_logic_vector(9 downto 0);
	PSFout : out std_logic_vector(9 downto 0));
end component;


component p2s is
generic(prate : in integer);
port(
	nrst, sclk : in std_logic;
	inbits : in std_logic_vector((prate-1) downto 0);

	outbit : out std_logic);
end component;



component upconv is
port(
	clk, nrst : in std_logic;
	base_r, base_i : in std_logic_vector(9 downto 0);

	pass_r, pass_i : out std_logic_vector(9 downto 0));
end component;




component downconv is
port(
	clk, nrst : in std_logic;
	pass_r, pass_i : in std_logic_vector(9 downto 0);

	base_r, base_i : out std_logic_vector(9 downto 0));
end component;







signal nrst, mclk : std_logic;
signal clk8x, clk4x, clk2x, clk1x : std_logic;
signal rbit : std_logic;
signal s2pout : std_logic_vector(3 downto 0);
signal rmapout, imapout : std_logic_vector(5 downto 0);
signal rupout, iupout : std_logic_vector(5 downto 0);
signal rupout_0000, iupout_0000 : std_logic_vector(9 downto 0);
signal rpsfout1, ipsfout1 : std_logic_vector(9 downto 0);
signal upreal, upimag : std_logic_vector(9 downto 0);
signal r, i : std_logic_vector(9 downto 0);
signal rpsfout2, ipsfout2 : std_logic_vector(9 downto 0);

signal rdnout, idnout : std_logic_vector(9 downto 0);
signal rpsfout_final, ipsfout_final : std_logic_vector(5 downto 0);
signal ri_after_demap : std_logic_vector(3 downto 0);
signal p2sout : std_logic;

begin

iclkgen : clkgen port map(
	nrst => nrst,
	mclk => mclk,
	clk8x => clk8x,
	clk4x => clk4x,
	clk2x => clk2x,
	clk1x => clk1x);

irbgen : rbgen port map(
	nrst => nrst,
	clk => clk4x,
	rbit => rbit);



is2p : s2p
generic map(prate => 4)
port map(
	nrst => nrst,
        sclk => clk4x,
	pclk => clk1x,
	inbit => rbit,
	outbits => s2pout);

iqmap : QAM16mapper port map(
	nrst => nrst,
	sclk => clk1x,
	inbits => s2pout,

	rdata => rmapout,
	idata => imapout);

iupsam : UpSample
generic map(UpRatio => 8,
	    Dwidth  => 6)
port map(
	nrst => nrst,
	upclk => clk8x,
	rdin => rmapout,
	idin => imapout,

	rdout => rupout,
	idout => iupout);

rupout_0000 <= rupout & "0000";
iupout_0000 <= iupout & "0000";

ipsf65T_r_tx : psf65T port map(
	nrst => nrst,
	clk => clk8x,
	PSFin => rupout_0000,
	PSFout => rpsfout1);

ipsf65T_i_tx : psf65T port map(
	nrst => nrst,
	clk => clk8x,
	PSFin => iupout_0000,
	PSFout => ipsfout1);

iupconv_r : upconv port map(
	nrst => nrst,
	clk => clk8x,
	base_r => rpsfout1,
	base_i => ipsfout1,

	pass_r => upreal,
	pass_i => upimag);

idownconv_r : downconv port map(
	nrst => nrst,
	clk => clk8x,
	pass_r => upreal,
	pass_i => upimag,

	base_r => r,
	base_i => i);



ipsf65T_r_rx : psf65T port map(
	nrst => nrst,
	clk => clk8x,
	PSFin => r,
	PSFout => rpsfout2);


ipsf65T_i_rx : psf65T port map(
	nrst => nrst,
	clk => clk8x,
	PSFin => i,
	PSFout => ipsfout2);



idnsam : DnSample
generic map(DnRatio => 8,
	    Dwidth  => 10,
	    LatchTime => 7)
port map(
	nrst => nrst,
	upclk => clk8x,
	dnclk => clk1x,
	rdin => rpsfout2,
	idin => ipsfout2,

	rdout => rdnout,
	idout => idnout);

rpsfout_final <= rnd(rdnout, 4);
ipsfout_final <= rnd(idnout, 4);


iqdemap : QAM16demapper
port map(
	nrst => nrst,
	sclk => clk1x,
	rdata => rpsfout_final,
	idata => ipsfout_final,

	outbits => ri_after_demap);

ip2s : p2s
generic map(prate => 4)
port map(
	nrst => nrst,
	sclk => clk4x,
	inbits => ri_after_demap,

	outbit => p2sout);


mclkp : process
begin
	mclk <= '1';
	wait for 20 ns;
	mclk <= '0';
	wait for 20 ns;
end process;


rstp : process
begin
	nrst <= '0';
	wait for 100 ns;
	nrst <= '1';
	wait;
end process;

end behavior;

---

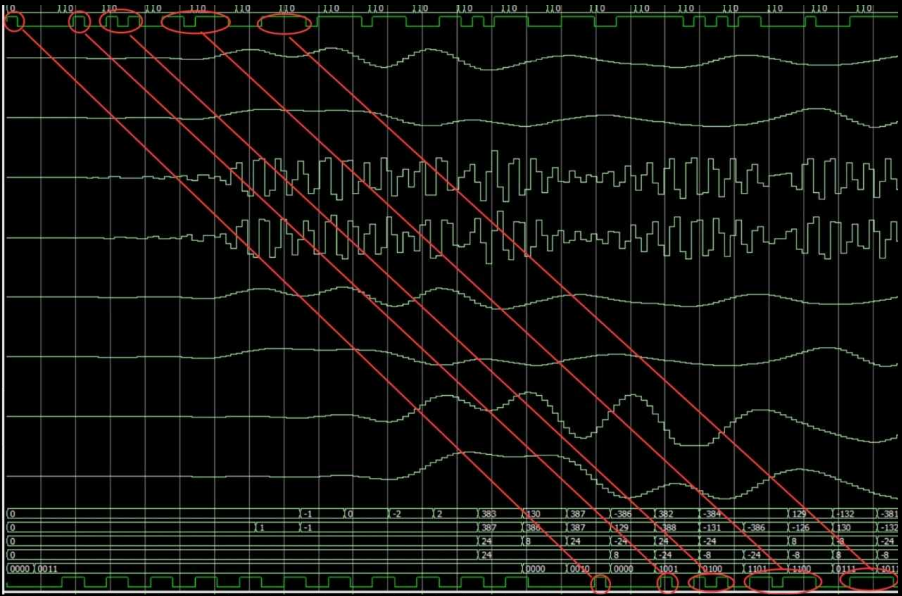

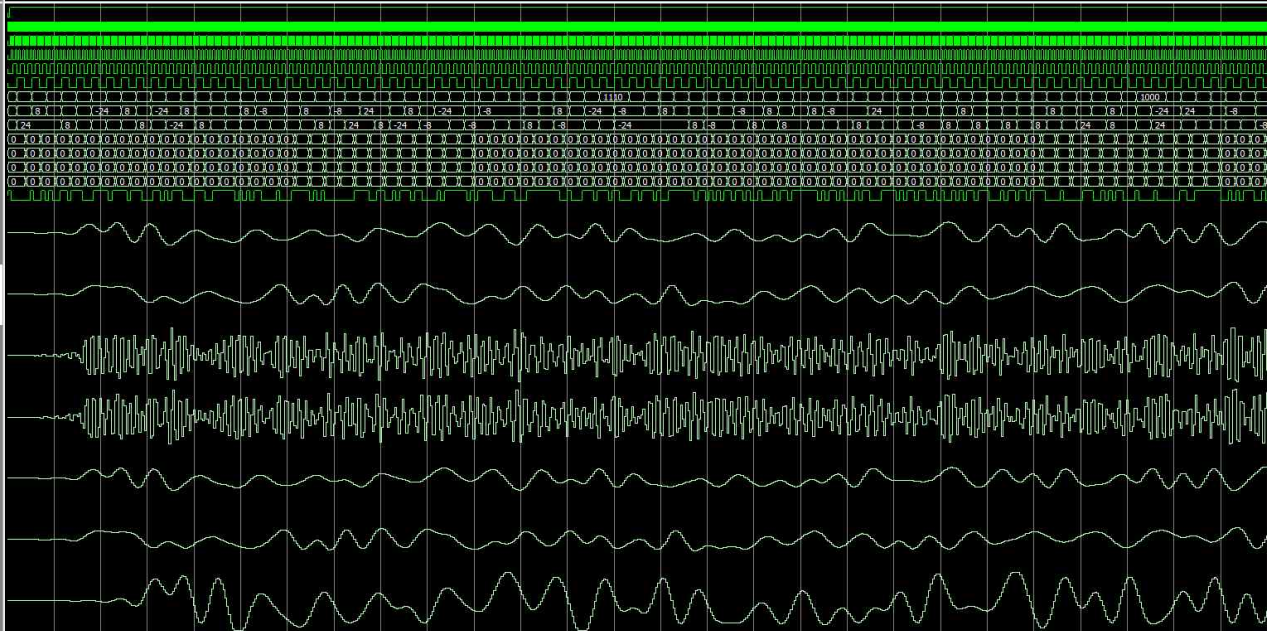

Wave Capture
